JGMaker G6 (Beta Version)

$569.00$759.00
  • JGMaker G6 - JGMaker3D
  • JGMaker G6 - JGMaker3D
  • JGMaker G6 - JGMaker3D
  • JGMaker G6 printing size - JGMaker3D
  • JGMaker G6 - JGMaker3D
  • JGMaker G6 - JGMaker3D

JGMaker G6 (Beta Version)

$569.00$759.00
  • 💰 Get $5 OFF for first purchase & earn points for every purchase with your account login.
    🎁  Get Rewards with Your Points & early access to sales and new products before the rush.

  • ● 1-year Warranty & 30-day Exchange/Refund/Return Guarantee

    ● Technical Support via email, live chat & phone call (806)269 0498.
    Join JGmaker User Group to get tips from employees and community.


  • Secured checkout with PayPal, credit cards and Shop Pay, pay in full or in 4 installments (interest-free).

Note:
* G6 is now available in beta, orders for G6 will be delivered from China. The parcel will be delivered in around 10 days which may result in customs duty, customers should pay for the customs tax if there's any.
* Customers of G6 Beta are eligible to receive exclusive technical follow-up from JGmaker technical team.
* Please understand that orders for G6 Beta can not be returned.

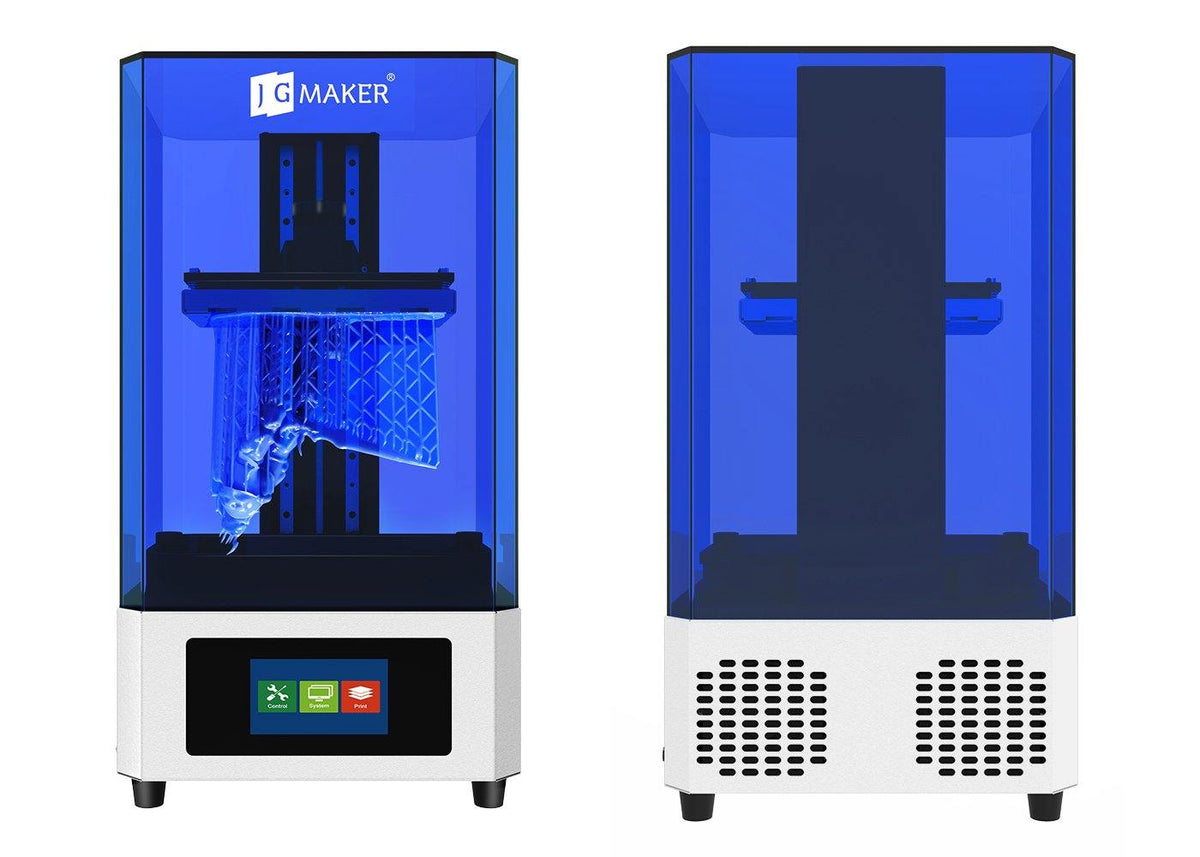

JGMaker G6
G6
JGMaker G5
G5
X/Y Resolution 3840*2400 (4K) 2560*1600 (2K)
Build Volume 192*120*260mm (8.9-inch) 210*130*240mm (10.1-inch)
Printing Speed 60mm/s 20mm/s
Z-axis Resolution 25μm 1.25μm
Curing Process LCD curing only Curing & Post-curing integrated
Supported File STL, CTB STL, cbddlp
Build Platform Reticulate perforation platform Standard

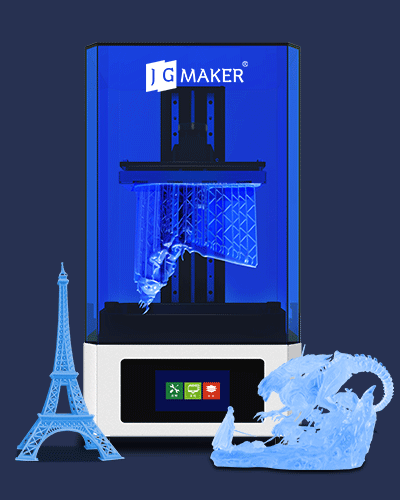

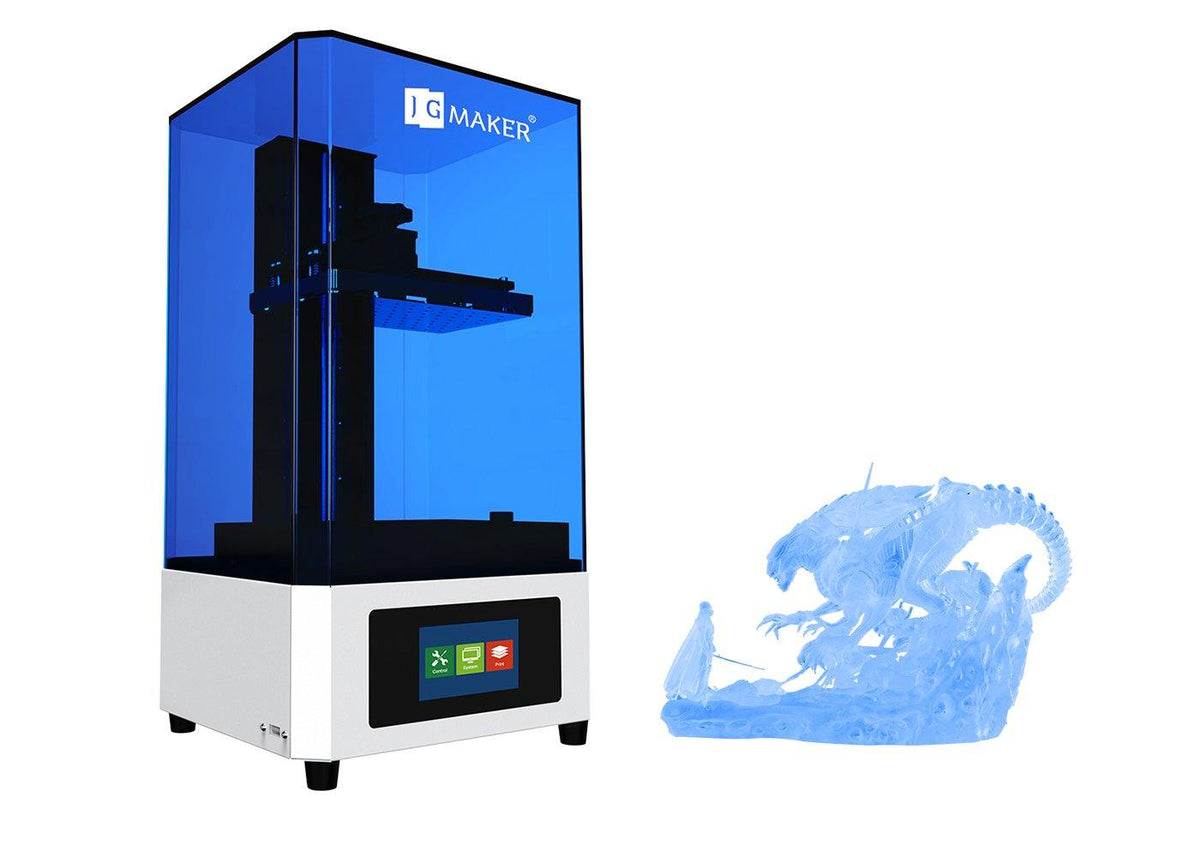

JGMaker® G6 Resin 3D Printer 8.9 inch 4K Mono

Technical Specifications

● Printing Technology: LCD-based Curing
● Forming Size: 192*120*260mm
● XY DPI: 3840*2400 (4K)
● Z-axis Resolution: 25μm
● Printing Speed: 60mm/h
● Supported Resin: 405nm photosensitive resin
● Light Source: UV integrated light (405nm wavelength)
● Supported OS:Windows7/Windows8/ Windows10 (64 bit)
● Rated Power: 140W
● Build Platform: Reticulate perforation platform
● Product Dimension: 280*248*510mm
● Product Net Weight: 11.5kg
● Shipping Dimension:365*340*605mm
● Shipping Weight: 15kg
● Supported File Types: STL、CTB
● Control Panel: 4.3”touch screen

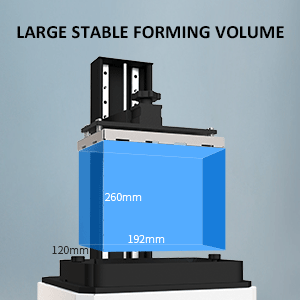

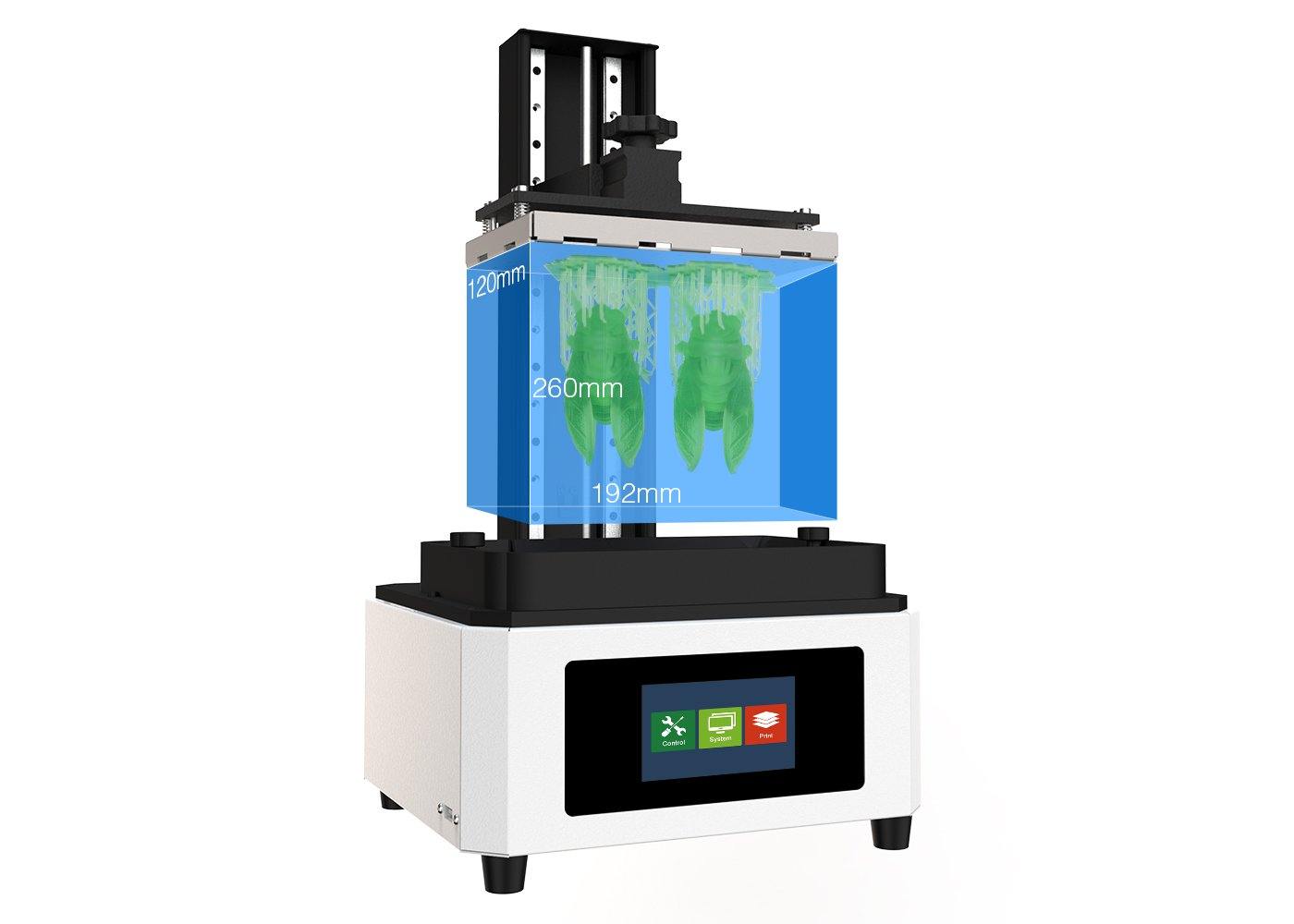

JGMaker G6 : Larger Curing Volume

Larger Curing Volume up to 192*120*260mm inspires your imagination for larger curing possibility

JGMaker G6 : 4k Monochrome LCD screen

4k Monochrome LCD screen requires shorter layer exposure time with higher printing speed, ensures higher precision up to 0.05mm, delivers visible details.

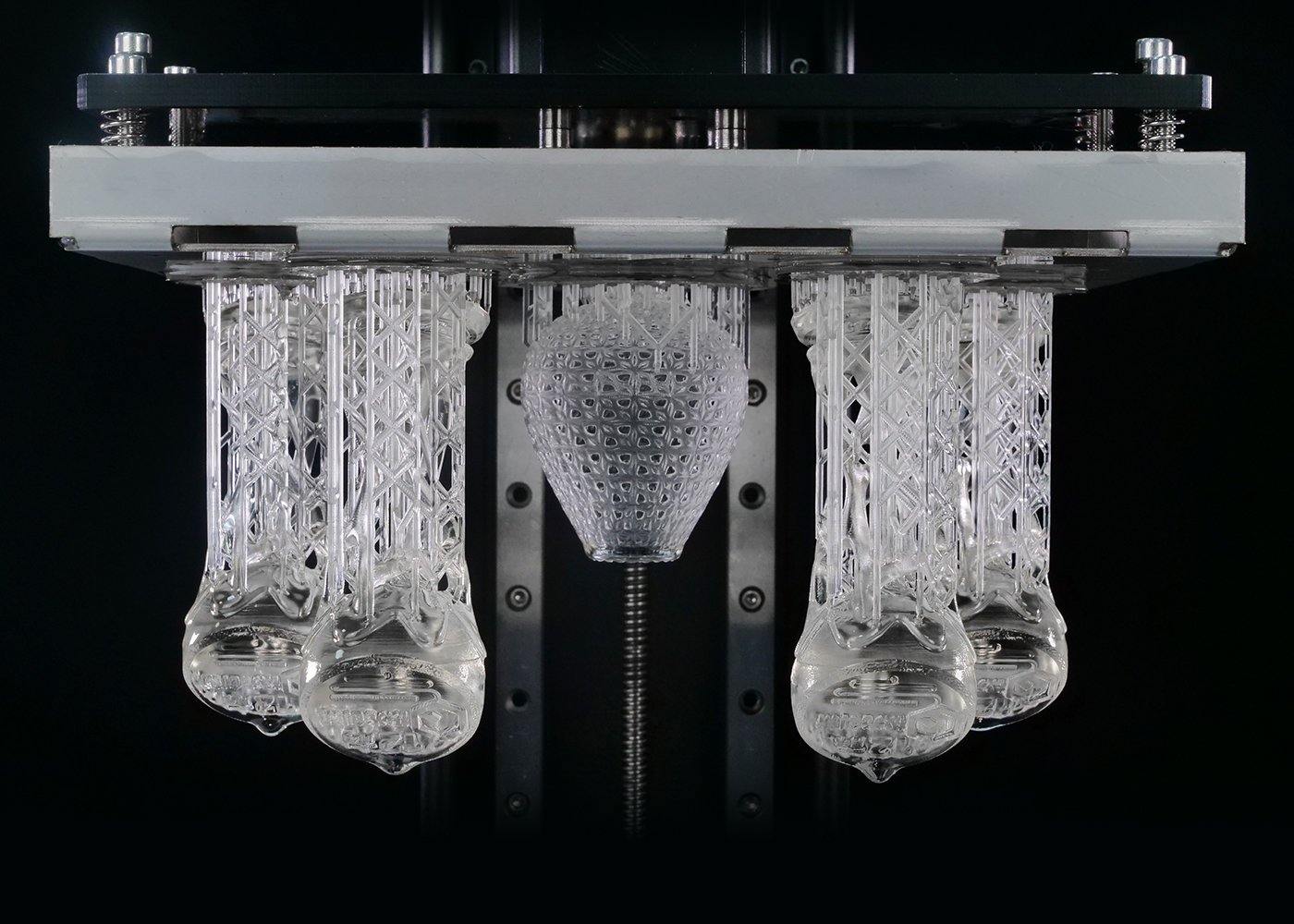

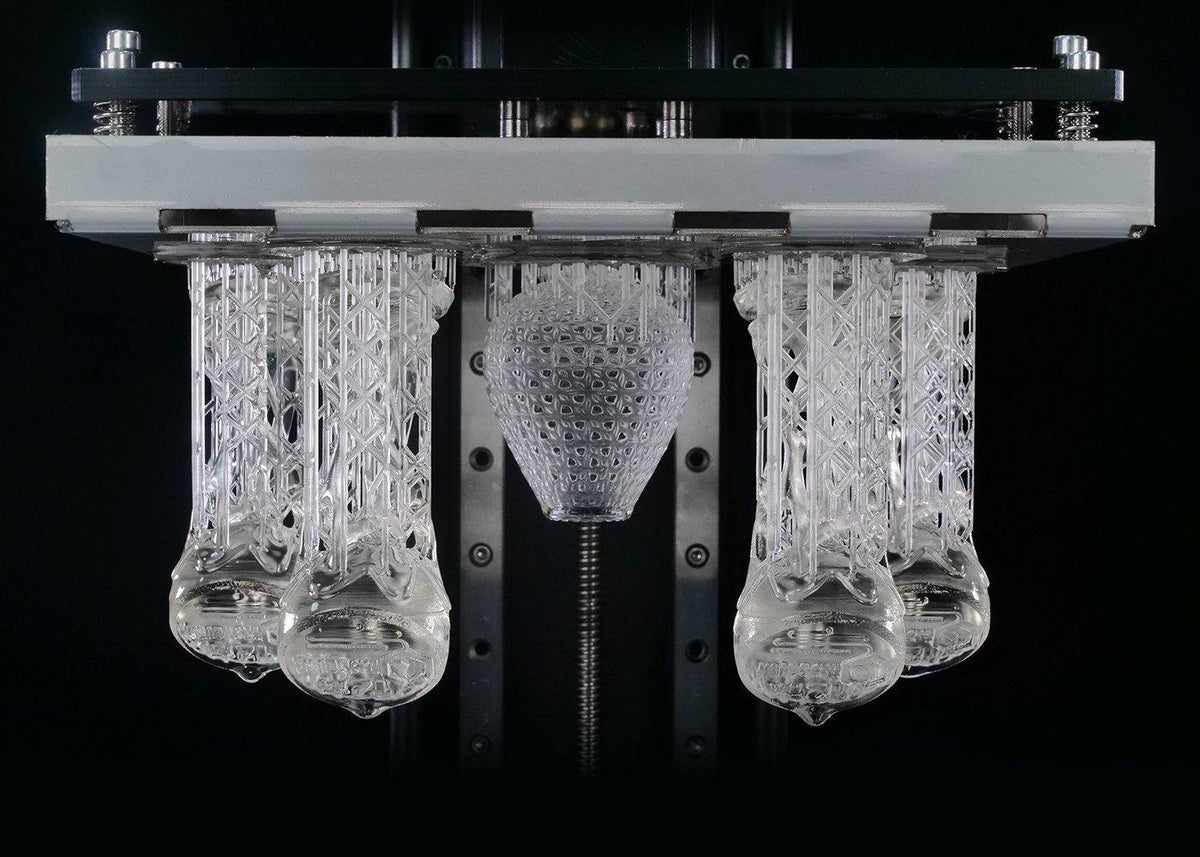

JGMaker G6 reticulate perforation platform

Resin flowing through the reticulate perforation makes curing faster and easier for model adhesion

JGMaker G6  industrial grade linear rail

Linear Rail is built with industrial grade parts to deliver smoother performance with less friction and higher precision

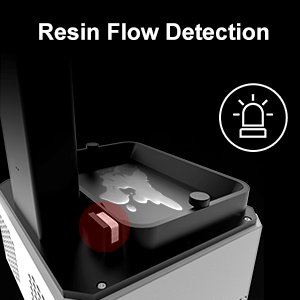

JGMaker G6 resin flow detection

Featured with a smart sensor for real-time resin flow detection, reminds you of resin shortage and allows you a quick change out without spoiling the print for continued printing.

JGMaker G6 cellular matrix UV light source

High quality quartz lamp bead and matrix design for uniform UV light energy

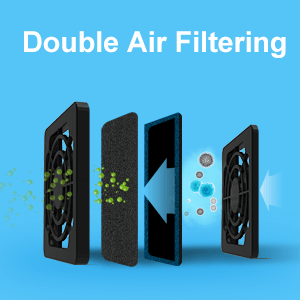

JGMaker G6 double air filtering

Dual air filters equipped, with activated carbon gauzes to filter out mote all-round.

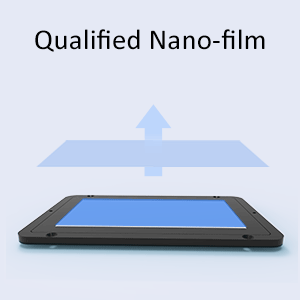

JGMaker G6 qualified nano-film

Nano-film with higher transmittance shorten reaction time to promote printing precision effectively.

Functional slicing enables smart support settings for whom is unfamiliar with print settings.

JGMaker G6 packing list
