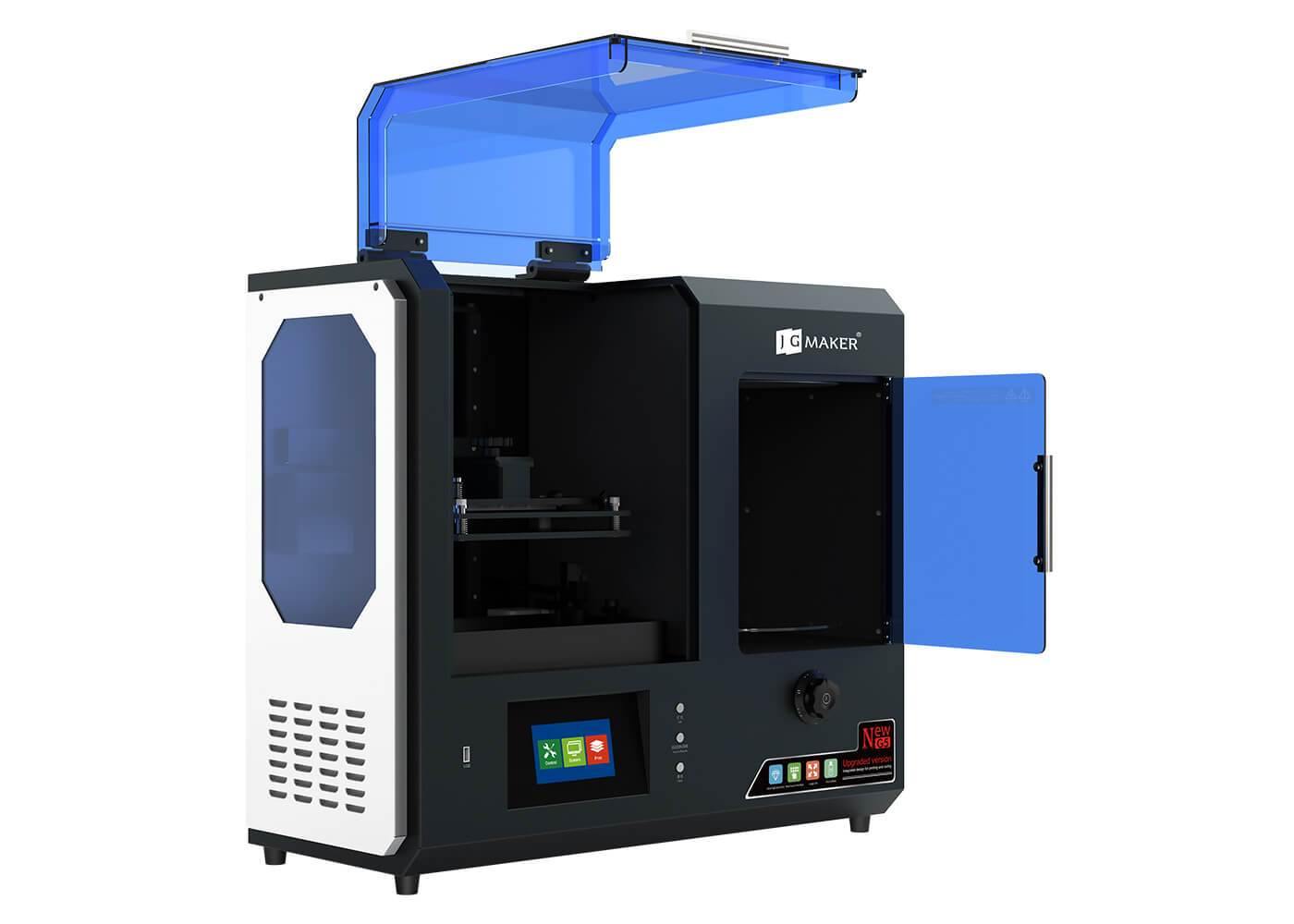

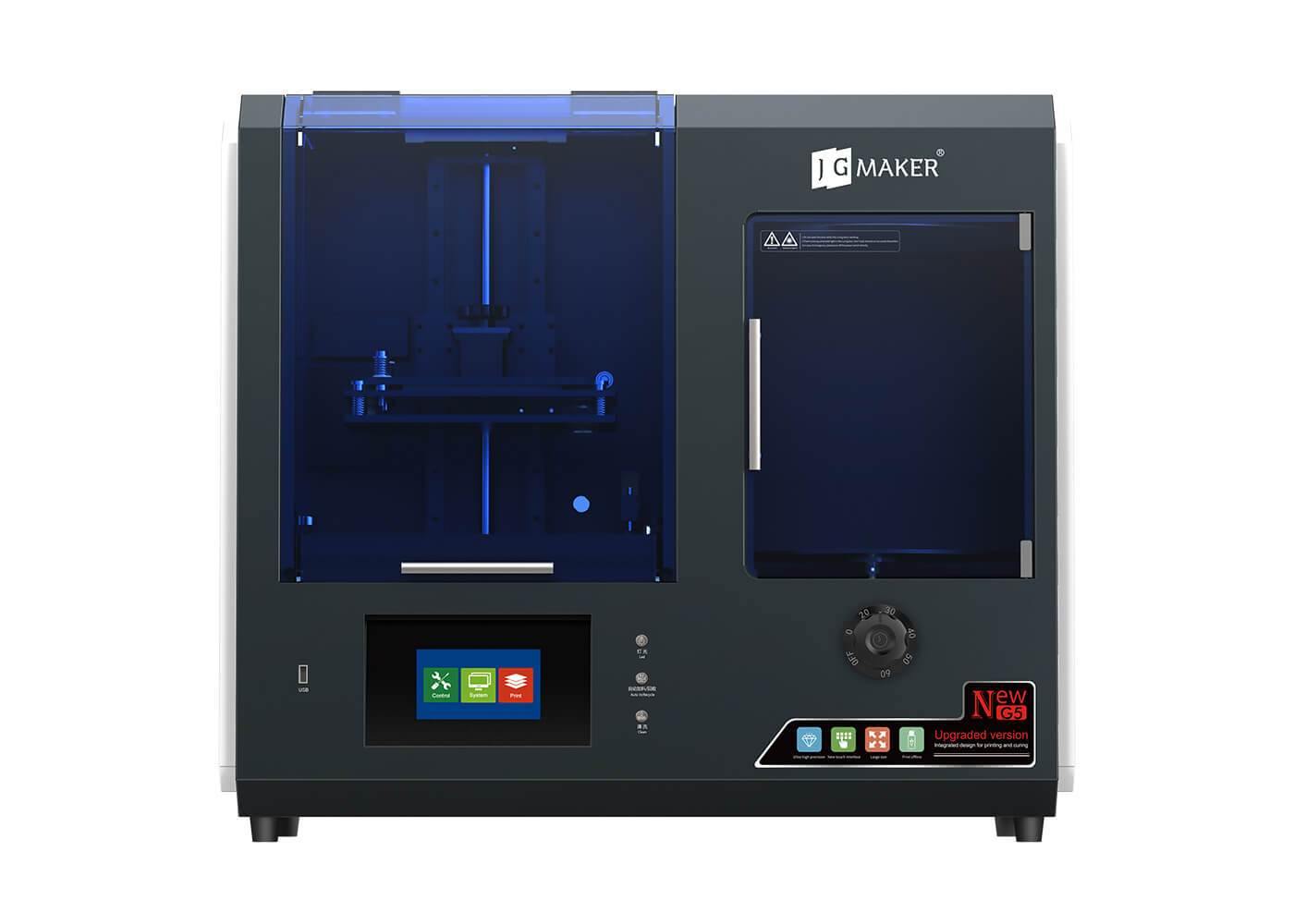

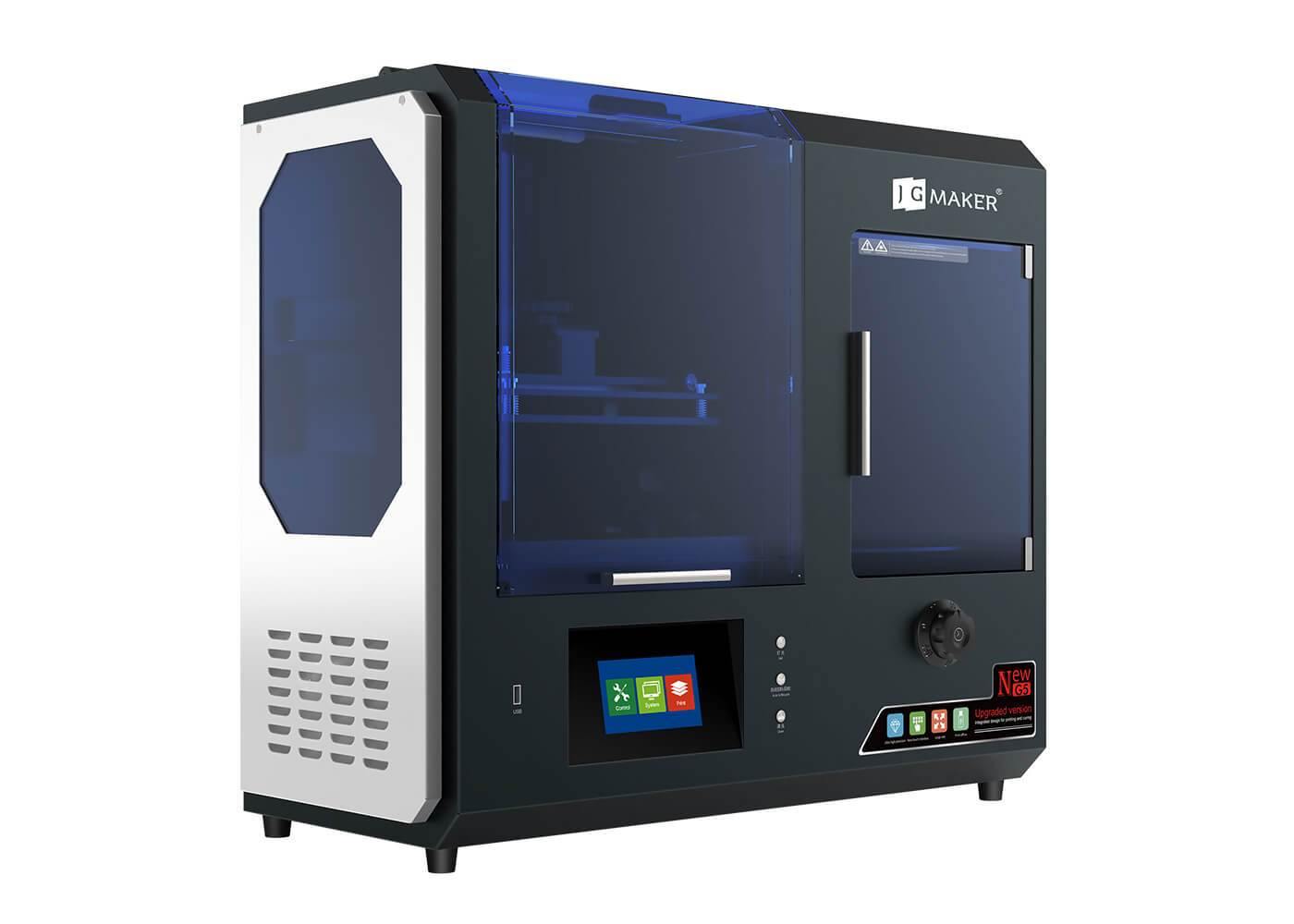

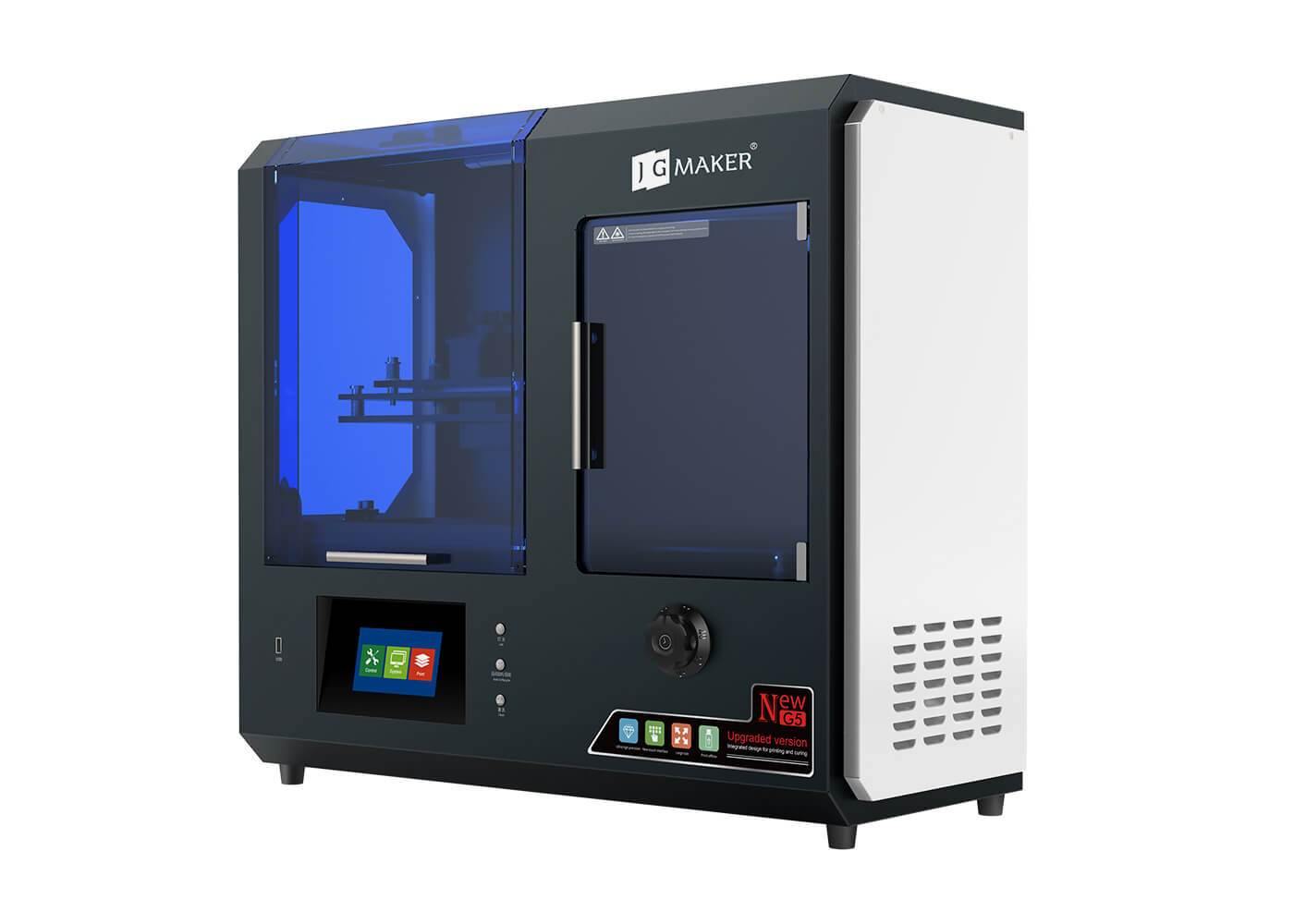

JGMaker G5

$1,899.00
  • JGMaker G5 - JGMaker3D
  • JGMaker G5 - JGMaker3D
  • JGMaker G5 - JGMaker3D
  • JGMaker G5 - JGMaker3D
  • JGMaker G5 - JGMaker3D

JGMaker G5

$1,899.00

Please Contact us to request for quote.

{formbuilder:48354}
JGMaker G6G6
JGMaker G5G5
X/Y Resolution 3840*2400 (4K) 2560*1600 (2K)
Build Volume 192*120*260mm (8.9-inch) 210*130*240mm (10.1-inch)
Printing Speed 60mm/s 20mm/s
Z-axis Resolution 25μm 1.25μm
Curing Process LCD curing only Curing & Post-curing integrated
Supported File STL, CTB STL, cbddlp
Build Platform Reticulate perforation platform Standard

Technical Specifications

  • Building Volume
    210*130*240mm
  • X/Y Resolution
    2560*1600
  • Z-axis Resolution
    1.25μm
  • Printing Speed
    20mm/h
  • Supported Resin
    405nm photosensitive resin
  • Light Source
    UV integrated light (wavelength 405nm)
  • Layer thickness
    25~100μm
  • Rated Power
    200W
  • Supported File Types
    STL, cbddlp, OBJ, SLC
  • Control Panel
    4.3”touch screen

Dimension and Weight

  • Net Weight
    30kg
  • Printer Size
    682.4*433*600mm

One machine with dual function--Post-curing time setting as you need for better post-processing

Auto pump functions with just one press of function button "Clean"" for cycle cleaning automatically. Cleaning will be a new experience for you.

One side of flexible spring which delivers inclined pattern for easier removal and adhesion with larger model.

Resin flow sensor combined with auto pump enable auto-feeding once resin in vat is monitored in shortage.

Truly large print volume of 210*130*240mm to offer greater printing possibility to achieve your prototyping.

Leveling self-adapted without any back and forth processing any more


Assembled with a precise ball scew ensure high reliability of stable and smooth motion with less friction for more accurate positioning.

Build with industrial grade parts to deliver smoother performance with less friction and higher precision.

Post curing and light-curing integrated for the better curing process, set curing time as you like.

Dual air filters equipped, with activated carbon gauzes to filter out mote all-round.

Layer thickness up to 25μm greatly improves smoothness of forming models

Nano-film with higher transmittance shorten reaction time to promote printing precision effectively.

High quality quartz lamp bead and matrix design for uniform UV light energy.

High-performed 32-bit chip combined with motor driver deliver higher precision and intelligent recording


Organic silicone screen ensures performance stability with longer service life
