Structure |
H-Bot Structure |
Maker-Bot Structure |
Motion Rail |
Ball Screw |
Trapezoidal Screw |
Printing Volume |
350*250*300mm |
300*200*200mm |
Stepper Motor Quantity |
2 |
1 |
Technical Specifications
-
Layer Resolution0.1mm
-
Layer Thickness0.05-0.3mm
-
Stock Nozzle Diameter0.4mm
-
Nozzle Temp≤245℃
-
Heated Bed Temp≤110℃
-
Print Speed10~120mm/s (suggested 60mm/s)
-
Supported Print MaterialsPLA/TPU 1.75mm
-
Build surfaceBorosilicate glass
-
Connectivity Working ModeUSB
-
File FormatSTL,OBJ,G-Code
-
OS CompatibilityWindows XP/ Win 7/ Win 10
Dimension and Weight
-
Product Weight34KG
-
Printer Size590*460*600mm
-
Package Weight45KG
-
Package Size745*575*750mm
Printing Volume up to 350x250x300mm to make more your creation into reality.
High Qualified H-Bot design with integrated sheet metal structure ensure printing stability
CNC processing the integrated X & Y platform ensures the X & Y flatness and platform strength for accurate positioning and printing.
Highly precise ball screw delivers stable pallets lifting and high accurate positioning, makes motion more accurate with less fraction.
The top cover is clamshell designed for convenient observation of printing process and printing quality observation and printer maintenance.
One stepper motor is standard and another is functioned as supplementary to makes material feeding and retreating more stable and effective for trouble-free issue of clogging.

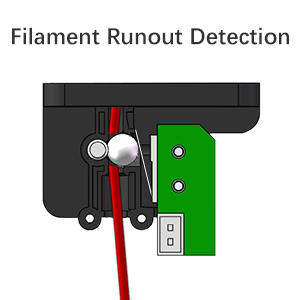

Beeps and alarms when filament runs out allows you a quick change out without spoiling the print for continued printing
Build with industrial grade parts to deliver smoother performance with less friction and higher precision.
10 times more accurate than a traditional mechanical switch with higher repeatability and free from mechanical collision intelligently
Made of one-piece aluminum block to support the platform with higher motion stability, keeps away from shaking after long service time.
Power Resume Printing feature that keeps the printer working even if there’s an accidental power failure, picking up its printing work where interrupted power supply or material feed left it.
Self-developed mainboard with silent stepper motor driver work together to offer you with silent enough printing environment, enjoy printing even after sleeping.
The platform made of borosilicate glass with higher temperature resistance feature that transfers heat uniformly to prevent models from warping effectively and easier for models removal and adhesion.
4.3-inch colorful touch screen presents with high resolution and sensitivity for a better touch experience.

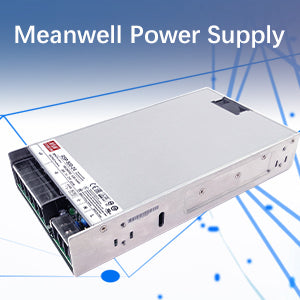

Brand is another guarantee not only for product but also for service, which ensures stable and sufficient power supply with higher reliability and safety
