Please Contact us to request for quote.
Structure |
Maker-Bot Structure |
H-Bot Structure |
Motion Rail |
Trapezoidal Screw |
Ball Screw |
Printing Volume |
300*200*200mm |
350*250*300mm |
Stepper Motor Quantity |
1 |
2 |
Technical Specifications
-
Layer Resolution0.1mm
-
Layer Thickness0.05-0.3mm
-
Stock Nozzle Diameter0.4mm
-
Nozzle Temp≤250℃
-
Heated Bed Temp≤110℃
-
Print Speed10~150mm/s (suggested 30~60mm/s)
-
Supported Print MaterialsPLA/ABS/TPU 1.75mm
-
Build surfaceGlass+Tape
-
Connectivity Working ModeSD card
-
File FormatSTL,OBJ,G-Code
-
OS CompatibilityWindows XP/ Win 7/ Win 10
Dimension and Weight
-
Product Weight22KG
-
Printer Size550*420*480mm
-
Package Weight29KG
-
Package Size655*540*620mm
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Solid-Integrated-Structure.jpg?v=1622692099)

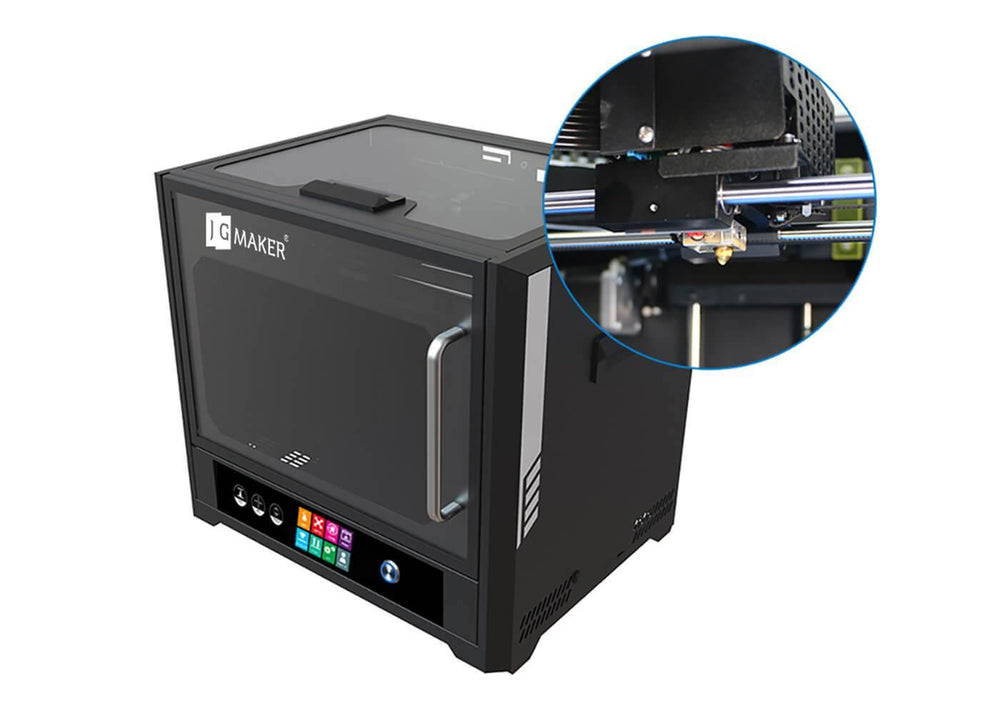

CNC metal design structure ensures higher precision, excellent stability and less vibration. Meanwhile keeps a balance for uniform temperature of nozzle and bed.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Large-Build-Volume.jpg?v=1622692206)
Upgraded to larger build volume up to 300*200*200mm which inspires your imagination for more printing possibility.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Industrial-Motion-Bearings.jpg?v=1622692254)
Motion bearings are industrial parts deliver smoother motion with less friction for more accurate movement.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Power-Off-Resume-Printing.jpg?v=1622692317)
Fearless of sudden power loss or accidental unplug of SD card, all can be recovered with the smart resuming function that keeps the printer working after reinsert and power on.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Filament-detector_bb114dfc-5531-4c3c-8b88-732bcbb82c62.gif?v=1622692467)
A smart sensor is equipped to detection whenever there is a filament shortage or breakage, detected and paused your print for resuming print after new filament feeds in.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Direct-Drive-Extrusion.gif?v=1622692577)
Less torque is required for feeding with gapless connection, various material handlings are supported with PLA, TPU as well as ABS, Wood etc.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Auto-Sleep-Mode.jpg?v=1622692659)
Automatically in dormant state after printing finished, energy-saving and keep you away from disturbing of light and voice.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Meanwell-Power-Supply.jpg?v=1622692802)
Brand power supply, more trustworthy with better quality and service, ensures stability and safety for operation.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Clamshell-Design.jpg?v=1623033849)
Properly designed with enough space for further maintenance, convenient observation for real-time printing process.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Optical-Switch.jpg?v=1623036171)
Shorter response time is required for intelligent optical switch, smartly enhance the motion accuracy and precision.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/HD-Touch-Screen.jpg?v=1623037268)
4.3’ HD touch screen together with new UI design deliver easier and convenient operation.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Intelligent-Auxiliary-Leveling.jpg?v=1623037580)
Accurate positioning of the leveling point with big enough adjustable knob make leveling just a piece of cake.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Patent-Nozzle-Design.jpg?v=1623037701)
Innovatively designed nozzle kit enhances heating process, feeding smoother to avoid clogs effectively.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/32-Bit-THB6128-Motor-Driver.jpg?v=1623037750)
High-performed chip together with THB6128 two-phase hybrid motor driver combined to deliver higher precision and silent printing environment.
![](https://cdn.shopifycdn.net/s/files/1/0406/3399/1320/files/Stable-Glass-Platform_0b84f458-a0bf-417d-a955-1ec50e3c9fab.jpg?v=1623037920)
The platform made of borosilicate glass with higher temperature resistance feature that transfers heat uniformly to prevent models from warping effectively and easier for models removal and adhesion.
